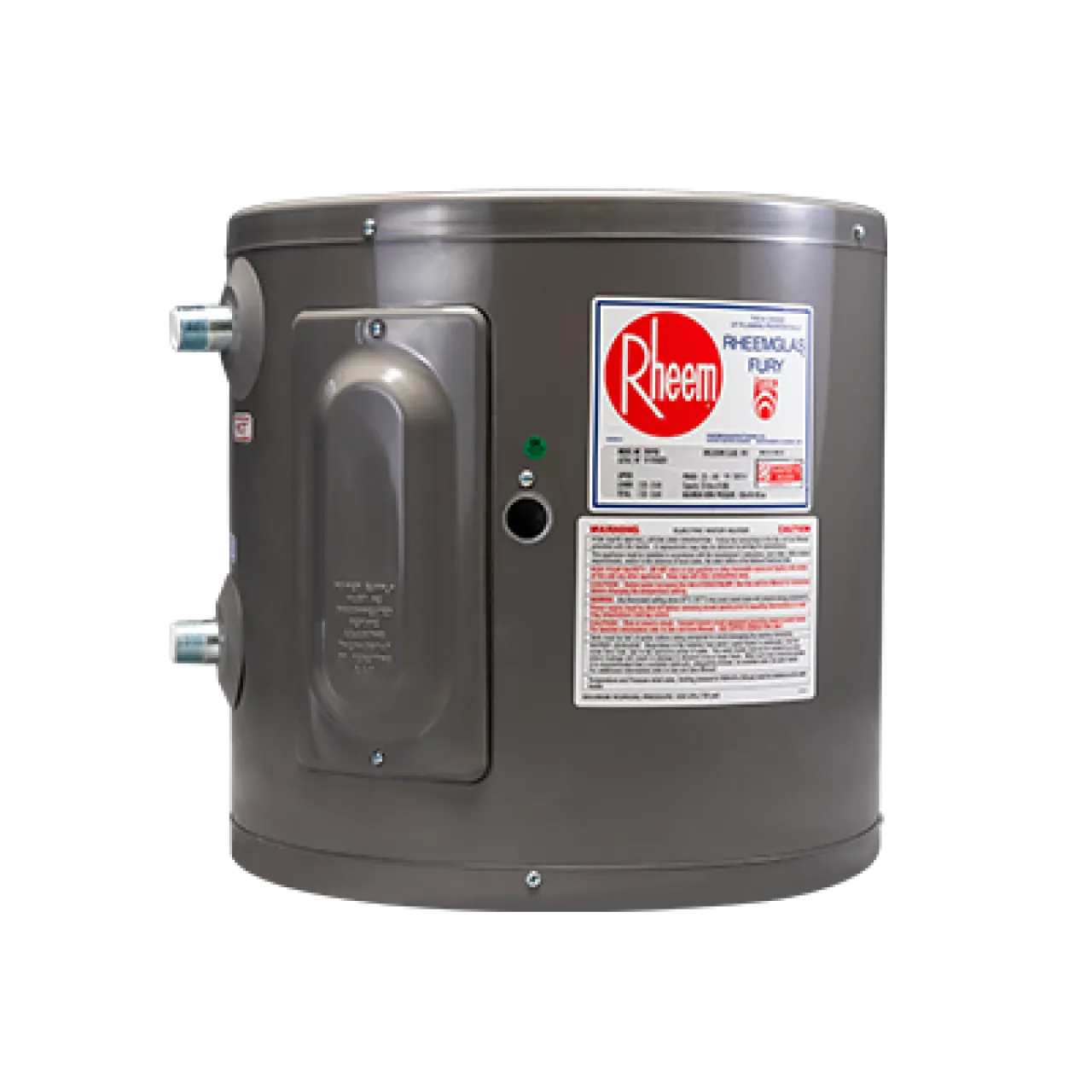

85VP-65SVP Classic Electric Storage Water Heater
MODEL 85VP6S
- High performance and low operating cost
- Automatic thermostat keeps water at desired temperature
- Anode rod prolongs heater lifespan
Select Capacity
6
Liters
10
Liters
15
Liters
20
Liters
30
Liters
Models
SKU 85VP6S
Model 85VP/65SVP Classic Electric Storage Water Heater
Tank Capacity 6
Fuel Electric
Energy Star Rated Yes
- High performance and low operating cost
- Self-sacrificing magnesium Anode rod equalizes aggressive water action and prolongs heater lifespan
- Thermal cut out to avoid overheating and prevent scalding
- Automatic thermostat keeps water at desired temperature
- Temperature and pressure relief valve to prevent excessive temperature and pressure in inner tank
- Maximum working pressure of 10bar (150psi)
| Model | 85VP6S | 65SVP10S | 65SVP15S | 85SVP20S | 85SVP30S | |
| Tank Capacity | USG | 6 | 10 | 15 | 20 | 30 |
| Litres | 23 | 38 | 57 | 76 | 113 | |
| Stainless Steel Element | Voltage | 240V | ||||
| (Kw) | 1.5/3.0 | 3.0 | ||||
| Operating Weight (Kg) | 40 | 57 | 83 | 108 | 156 | |
| Heater Dimension(mm) | Diameter | 400 | 400 | 450 | 500 | 553 |
| Height | 390 | 445 | 510 | 640 | 770 | |
| Shipping Weight (Kg) | 17 | 19 | 26 | 32 | 43 | |
| Shipping Dimension(mm) | Length | 469 | 460 | 510 | 560 | 620 |
| Width | 420 | 420 | 470 | 520 | 570 | |
| Height | 420 | 470 | 540 | 670 | 810 | |
| Current Draw (amps) | 6.25/12.5 | 12.5 | ||||
| Over Current Protection (amps) | 15 | |||||
| Approx. Heat up Time to 90°C (Mins) | 19 | 31 | 46 | 61 | 92 | |
*Heat up time is calculated based on a 3kW, incoming temperature of 25°C. All pipe size for inlet and outlet -3/4 inch. N.P.T. All single phase
