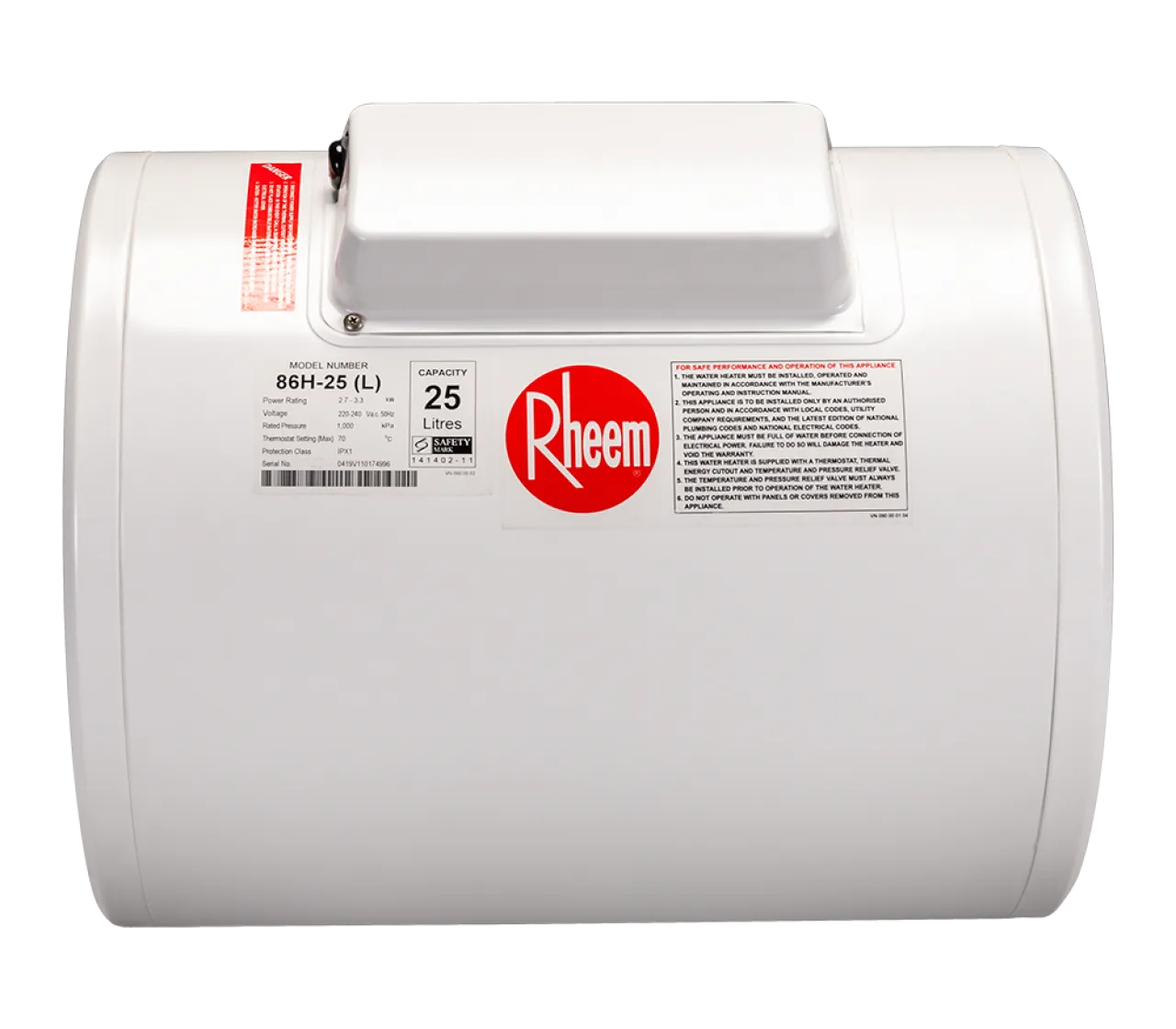

86H Classic Electric Storage Water Heater
MODEL 86H25
Warranty information needed.
- Exclusive Rheemglas Enamel Tank Protection Against Corrosion
- UL Approved Temperature and Pressure Relief Valve
- Adjustable Thermostat with Over Temperature Protection
Select Capacity
25
Liters
45
Liters
55
Liters
75
Liters
100
Liters
Models
SKU 86H25
Model Classic Electric Storage Water Heater 86H
Tank Capacity 25
Fuel Electric
Energy Star Rated Yes
- Exclusive Rheemglas enamel tank protection against corrosion
- UL approved temperature and pressure relief valve
- Adjustable thermostat with over temperature protection
- Incoloy 840 heating element to prolong lifespan
- Sacrificial magnesium anode rod to protect inner tank from corrosion
- High density polyurethane insulation foam between inner tank and epoxy coated steel jacket
| Model | 86H-25 | 86H-40 | 86H-55 | 86H-75 | 86H-100 | |
| Rated Capacity | Litres | 25 | 40 | 55 | 75 | 100 |
| Rated Power | kW | 3,000W 230Va.c. 50Hz | ||||
| Approx. Heat Up Time to 60°C | 20 | 32 | 44 | 60 | 80 | |
| Length (A) | mm | 460 | 664 | 868 | 1140 | 973 |
| Diameter (B) | 377 | 461 | ||||
| Inlet & Outlet Spacing (C) | 150 | 240 | ||||
| Mount Hole Spacing (D) | 320 | 340 | 478 | 812 | 632 | |
| Overall Width Heater Unit (E) | 418 | 502 | ||||
| Total Distance from Wall (F) | 426 | 510 | ||||
| Total Height from Ceiling (G) | 396 | 480 | ||||
| Temperature Setting | (°C) | Factory Set 60°C (Maximum 70°C) | ||||
| Temperature & Pressure Relief Valve | kPa | 1,000 | ||||
| Pipe Connection Sizes | Rp 20 (3/4'' x 14) | |||||
| Shipping Weight | kg | 15 | 23 | 28 | 34 | 38 |
