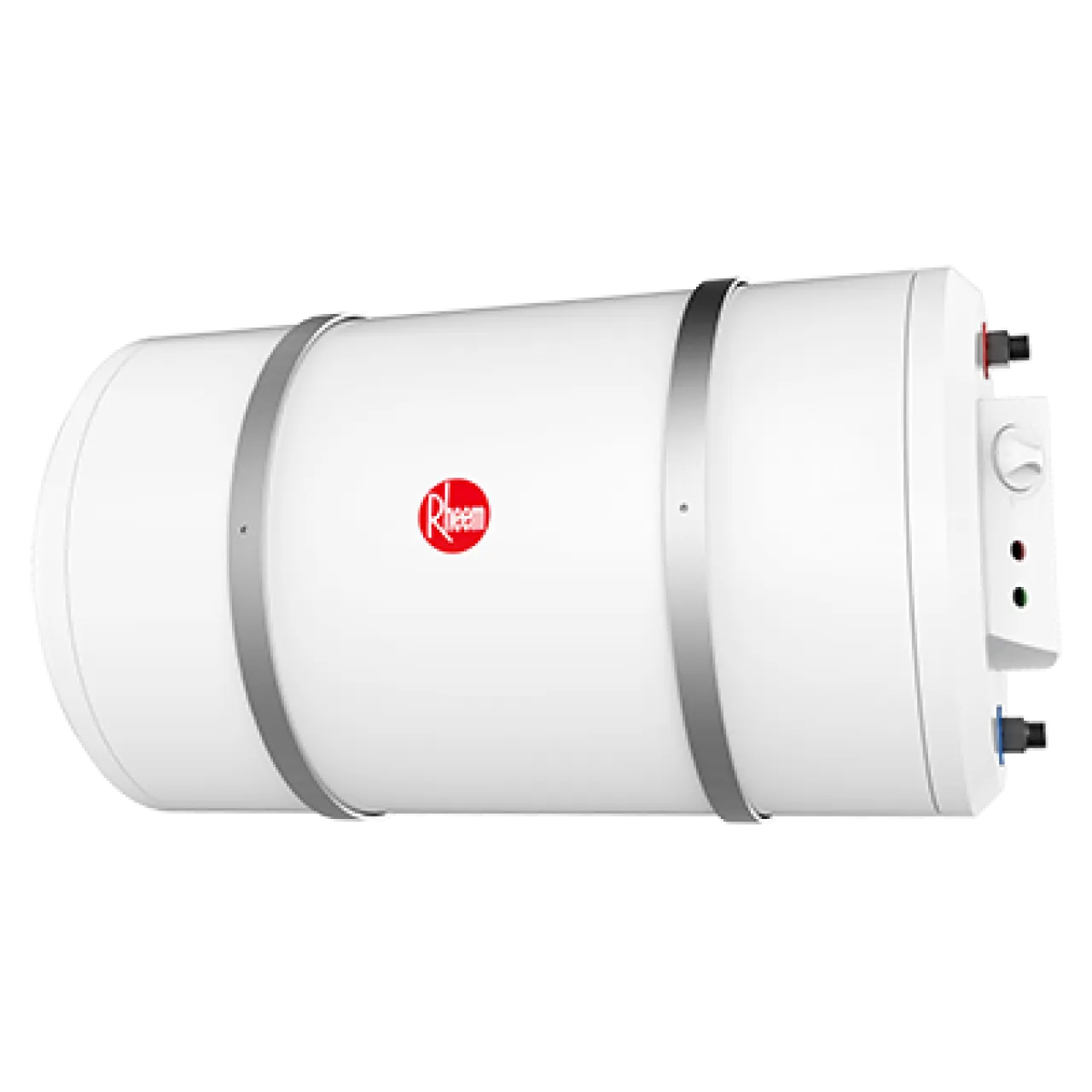

EHG Classic Electric Storage Water Heater
MODEL EHG40
Warranty information needed.
- Easy Installation with Universal Connections
- Customized Relief Valve
- Exclusive Vitreous Enamel Coating to Resist Corrosion
Select Capacity
30
Liters
40
Liters
50
Liters
60
Liters
80
Liters
100
Liters
Models
SKU EHG40
Model Classic Electric Storage Water Heater EHG
Tank Capacity 40
Fuel Electric
Energy Star Rated Yes
- Universal connections
- Easy installation
- Customized relief valve
- Exclusive vitreous enamel coating to resist corrosion
- Magnesium anode to counter aggressive water
- CFC free polyurethane foam with epoxy coated jacket
- Pressure relief valve with built in check valve
- Adjustable immersion thermostat with thermal cut out
- Water connection enameled for corrosion protection
- On/off indicating light shows the cut in/off of the heating element
- Incoloy 840 immersion heating element
- Maximum working presure at 8 bars (800kPa)
- Installation space saving horizontal layout using universal bracket
- Service panel on the side of the heater facilitates easy access for maintenance or servicing
| Model | EHG30 | EHG40 | EHG50 | EHG60 | EHG80 | EHG90 | EHG100 | |
| Tank Capacity | Litres | 30 | 40 | 50 | 60 | 80 | 90 | 100 |
| Stainless Steel Element | Voltage | 240V | ||||||
| (Kw) | 3.0 | |||||||
| Operating Weight (Kg) | 47 | 61 | 72 | 84 | 109 | 120 | 132 | |
| Heater Dimension(mm) | Diameter | 380 | 380 | 380 | 380 | 410 | 410 | 410 |
| Length | 540 | 640 | 740 | 860 | 970 | 1055 | 1155 | |
| Preset Temp °C | 60 | |||||||
| Approx. Heat up Time to 60°C (Mins) | 24 | 32 | 40 | 48 | 64 | 72 | 80 | |
*Approximate time taken to heat up to 60°C at inlet water temperature of 25°C. All connection in 1/2" BSP thread
Warranty information needed.
